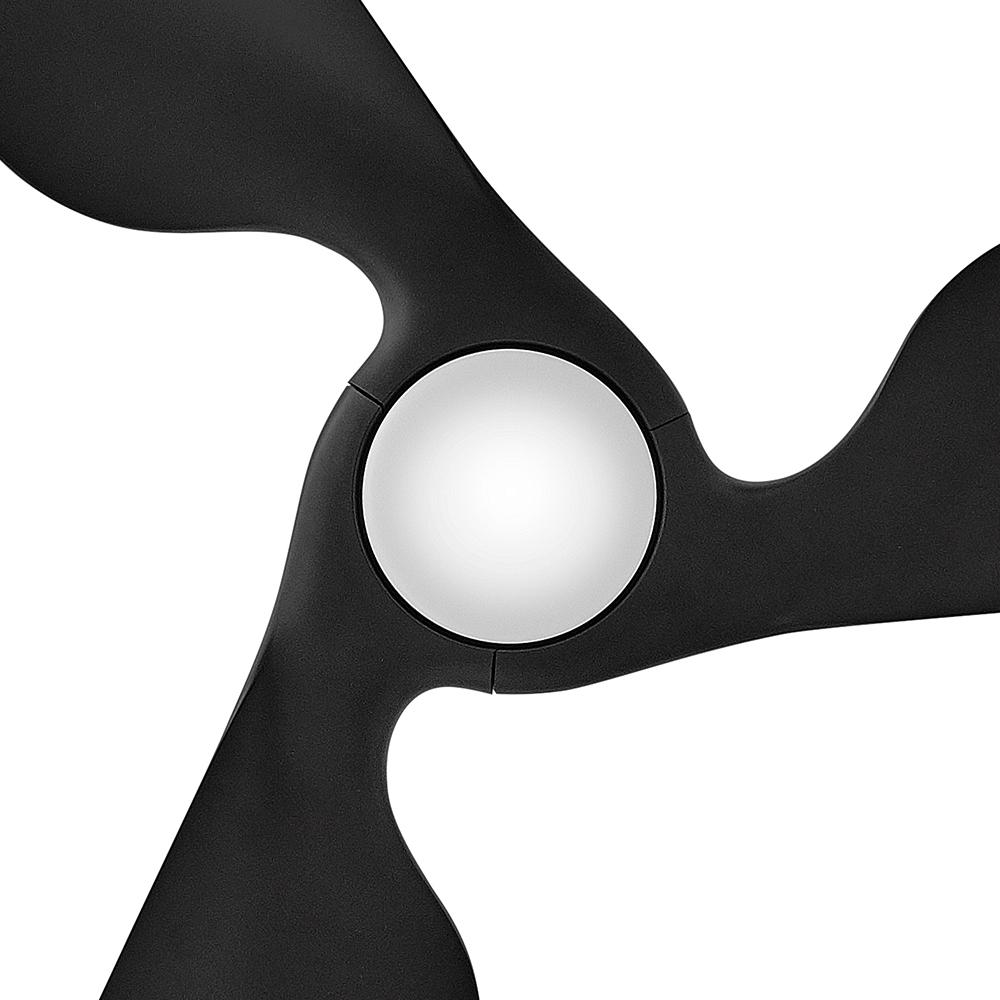

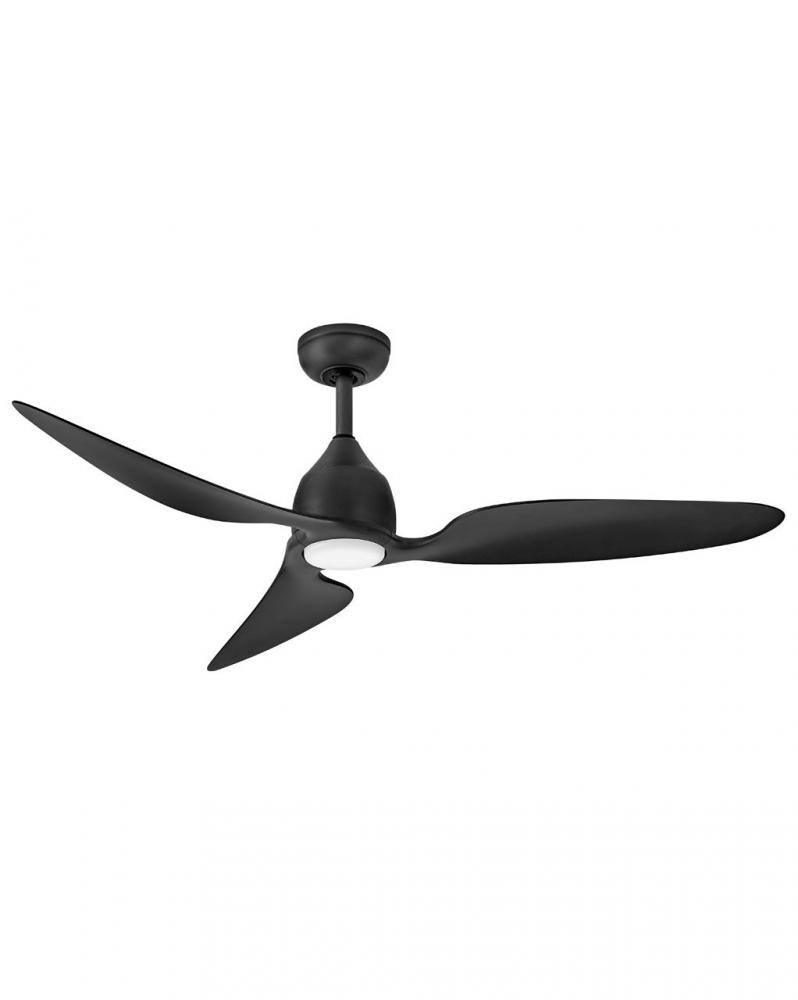

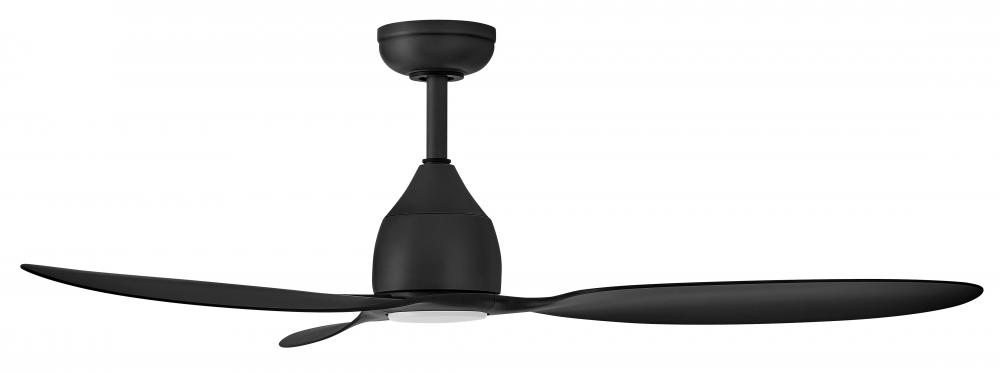

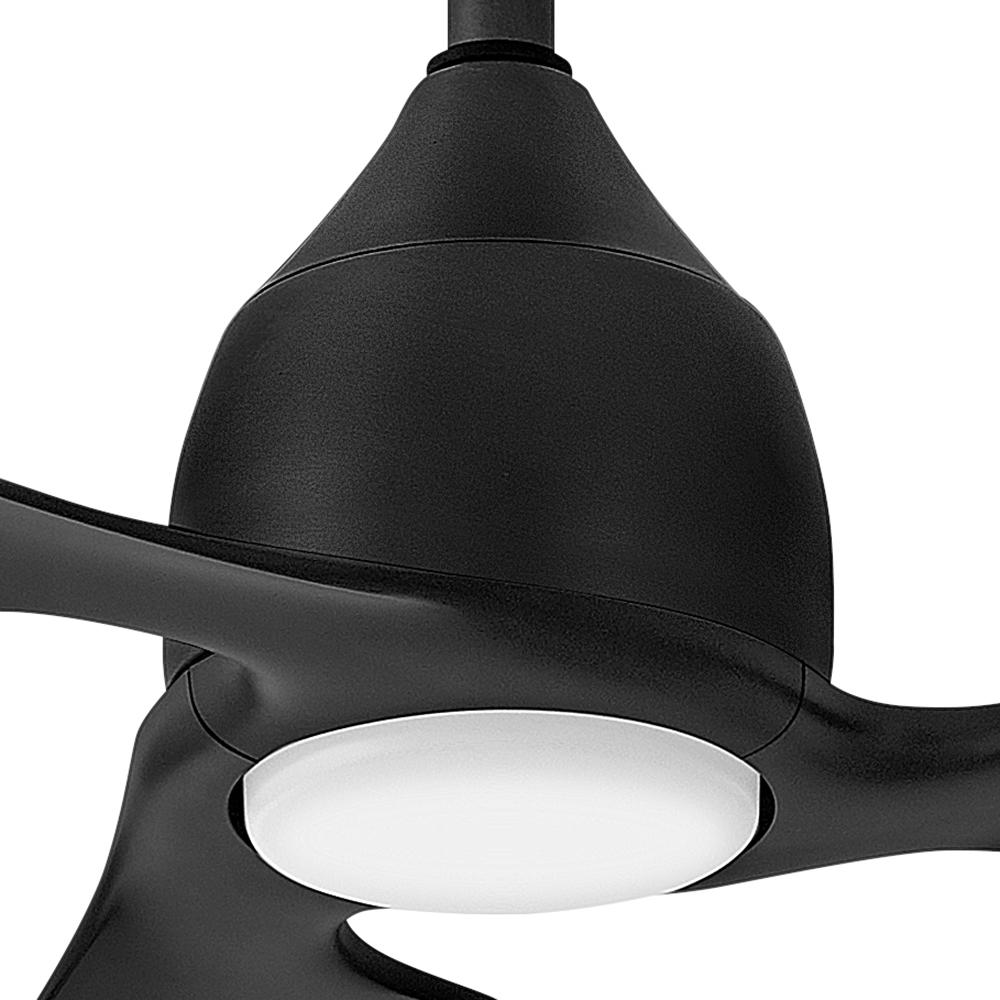

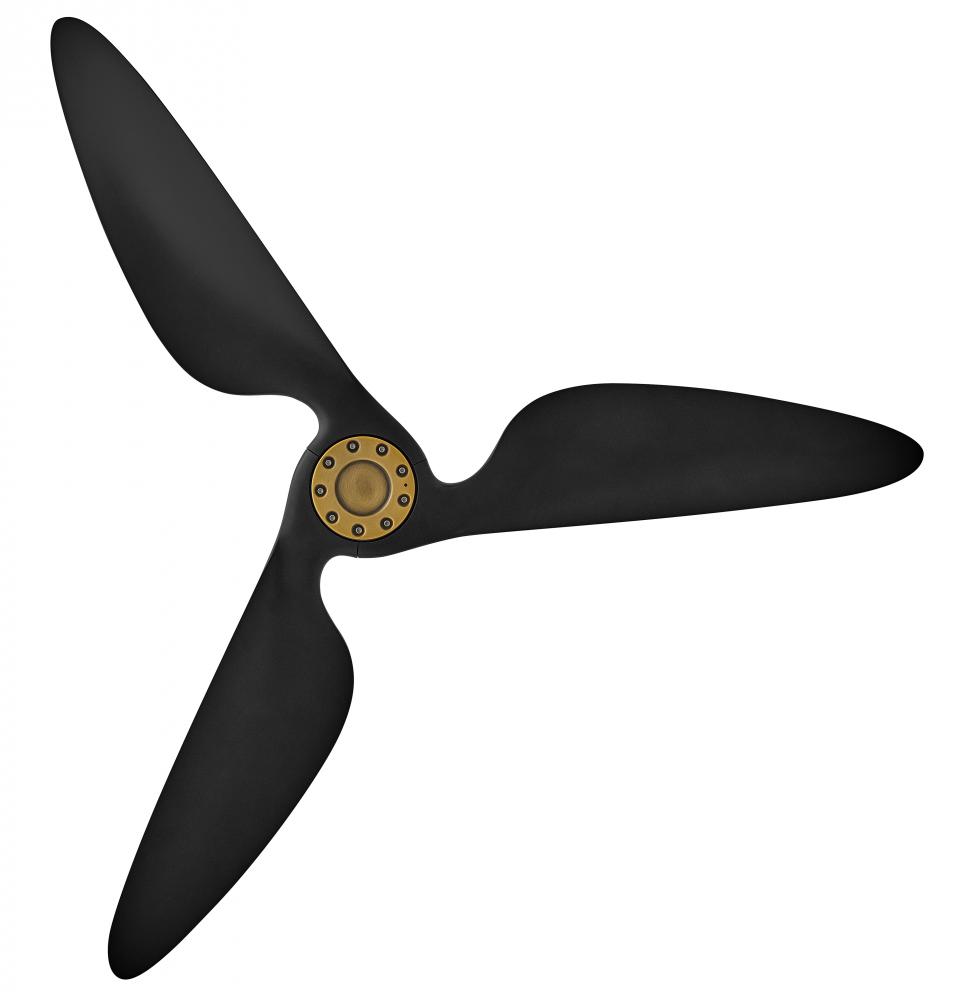

Crafted with a flowing, sculptural silhouette, Azura features durable composite blades suitable for both outdoor areas and interior settings. Contemporary finishes are paired with a sleek polycarbonate lens and integrated LEDs for energy-efficient lighting. Equipped with a 6-speed DC motor that is WiFi enabled and ready to connect right out of the box. Operated by the HIRO control or WiFi compatible with the Hinkley App.

Category:

Fans

Subcategory:

Ceiling Fans with Light

Finish:

Black

Style:

Modern

Option:

Title 24 , Wet Rated

Category:

Fan

Finish:

Matte Black

Style:

Modern

Family:

Azura

Glass:

Polycarbonate Lens

Voltage:

120 V

Number of Bulbs:

1 Bulbs

Air Flow Efficiency:

5594

Amperage:

0.36

Blade Finish:

Matte Black

Blade Pitch:

Blade Span:

Blades Included:

Yes

Bulb Dimmable:

Yes - CL Type Dimmer (SSL7A)

Bulb Hours:

50000

Bulb Type:

LED

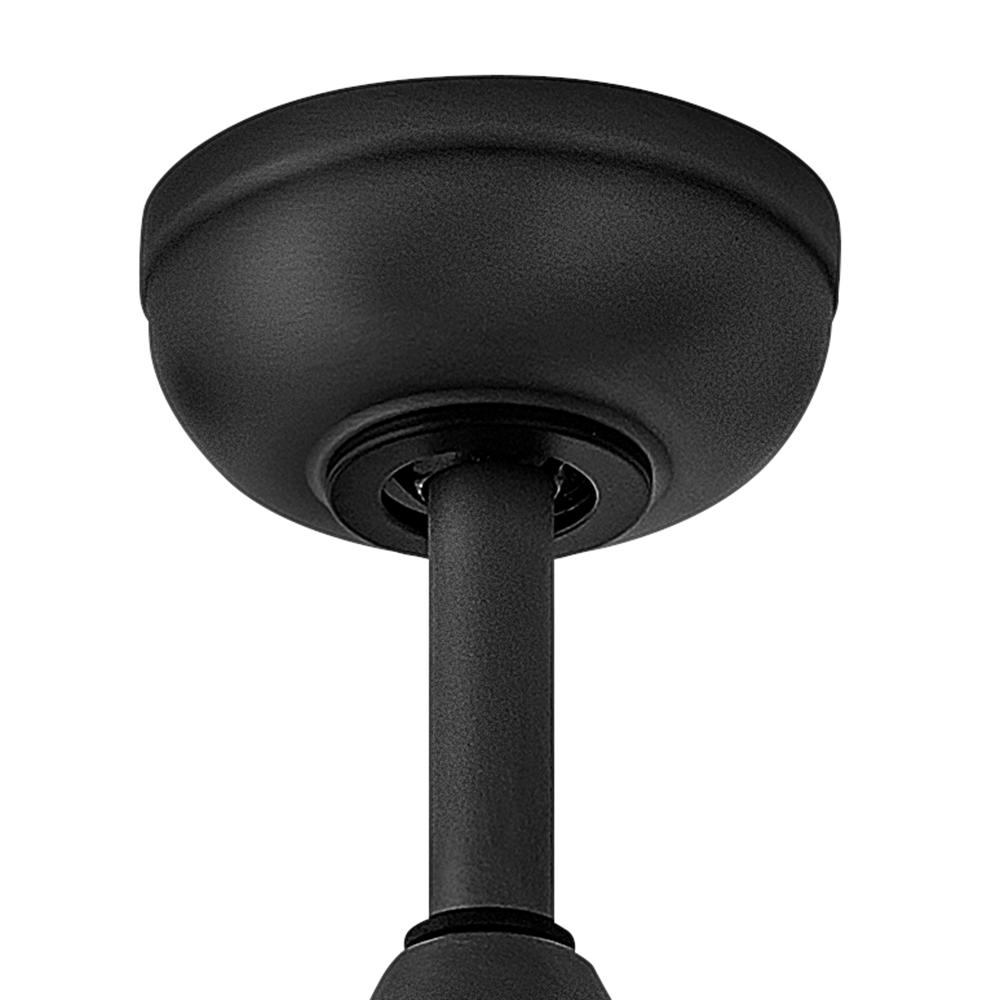

Canopy:

6 Dia. x 2.25 D

Introduction Date:

01/01/2024

Kelvin:

3000

Light Kit Included:

Yes

Lumens / Light Output:

1320

Material:

Steel

Motor Size:

DCS-15NS

Motor Type:

Ship Carton Height:

8.9

Ship Carton Length:

Ship Carton Width:

15.6

Ship Weight:

18.8

Vendor Ship Method:

Parcel

Weight:

11.7

Airflow Avg:

3775

AMPS Avg:

0.21

Avg Energy Use:

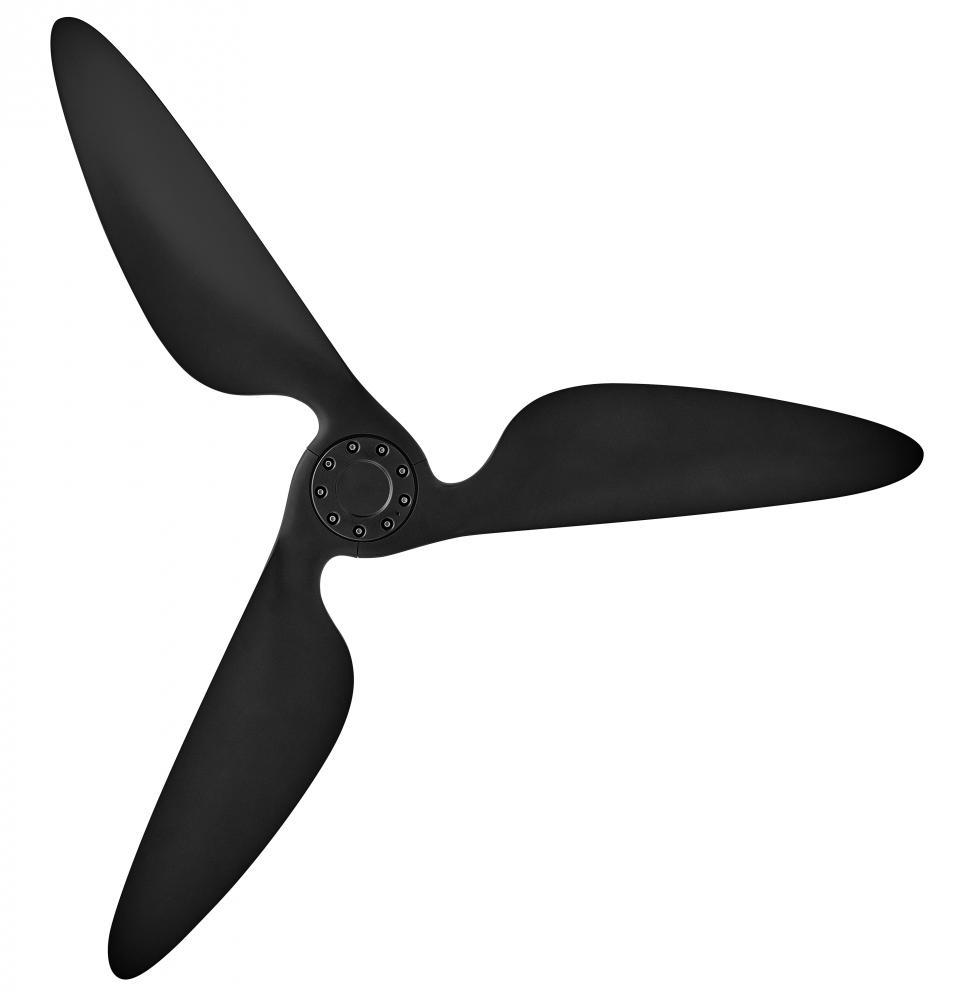

Blade Material:

Composite

Blade Options Available:

Blade To Ceiling Height:

12.5

Blades Reversible:

Bulb CRI:

Bulb Included:

Yes

Control Type:

HIRO Control - 6 Speed Reversing

Country of Origin:

China

Dual Mount:

Efficiency Avg:

216

Efficiency High:

232

Energy Cost Avg:

Energy Cost High:

6.76

Energy Use High:

24.1

Fan Control:

Yes

Flush Mount Fan:

Incandescent Equivalency:

100 W

Light Kit Adaptable:

Light Source:

Integrated LED

Location Rating:

Wet Rated

Max Wattage:

16 W

Motor Fan Speed:

Number of Blades:

Operating Frequency:

Prop 65 Description:

CALIFORNIA PROP 65: WARNING: This product can expose you to chemicals including lead which is known to the State of California to cause cancer and birth defects or other reproductive harm. for more information go to www.P65Warnings.ca.gov

Receiver Included:

Yes

Reversing Control:

Yes

RPMS Avg:

101

RPMS High:

152

Safety Rating:

UL Approved, C-US Approved

Single Power Switch:

Slope:

Sloped Ceiling Adaptable:

Yes

Stand By Power:

1.25

Title 24:

Yes

WIFI Control Included:

Yes

WIFI Control Optional:

Additional Information:

Blades, controls, switches, capacitors and hardware carry a 1-year warranty
Bold silhouette with dramatic details creates a modern statement
Fan Control included, HIRO Control - 6 Speed Reversing
Fans should be installed at a minimum of 7 feet from the floor
For more information on how to control your ceiling fan via the Hinkley Home Automation App, click here.
LED components carry a 5-year limited warranty
Motor carries a lifetime warranty
Suitable for use in wet (outdoor direct rain) locations as defined by NEC and CEC. Meets United States UL Underwriters Laboratories & CSA Canadian Standards Association Product Safety Standards
This item includes a 6" down rod. Other various lengths of down rods are available and sold separately to customize the installation height.
This item includes a light kit cover
This item may be hung on a sloped ceiling
This product uses recyclable or limited packaging materials to help reduce waste.
WiFi compatible with included fan control
